1½ STOREY DETACHED FACTORY

TYPE X
1½ STOREY DETACHED FACTORY

(1.8 acres)

LAND AREA
Approx. 78,185.39 - 82,228.35 sq.ft.
GROSS FLOOR AREA
Approx. 60,362.36 sq.ft.

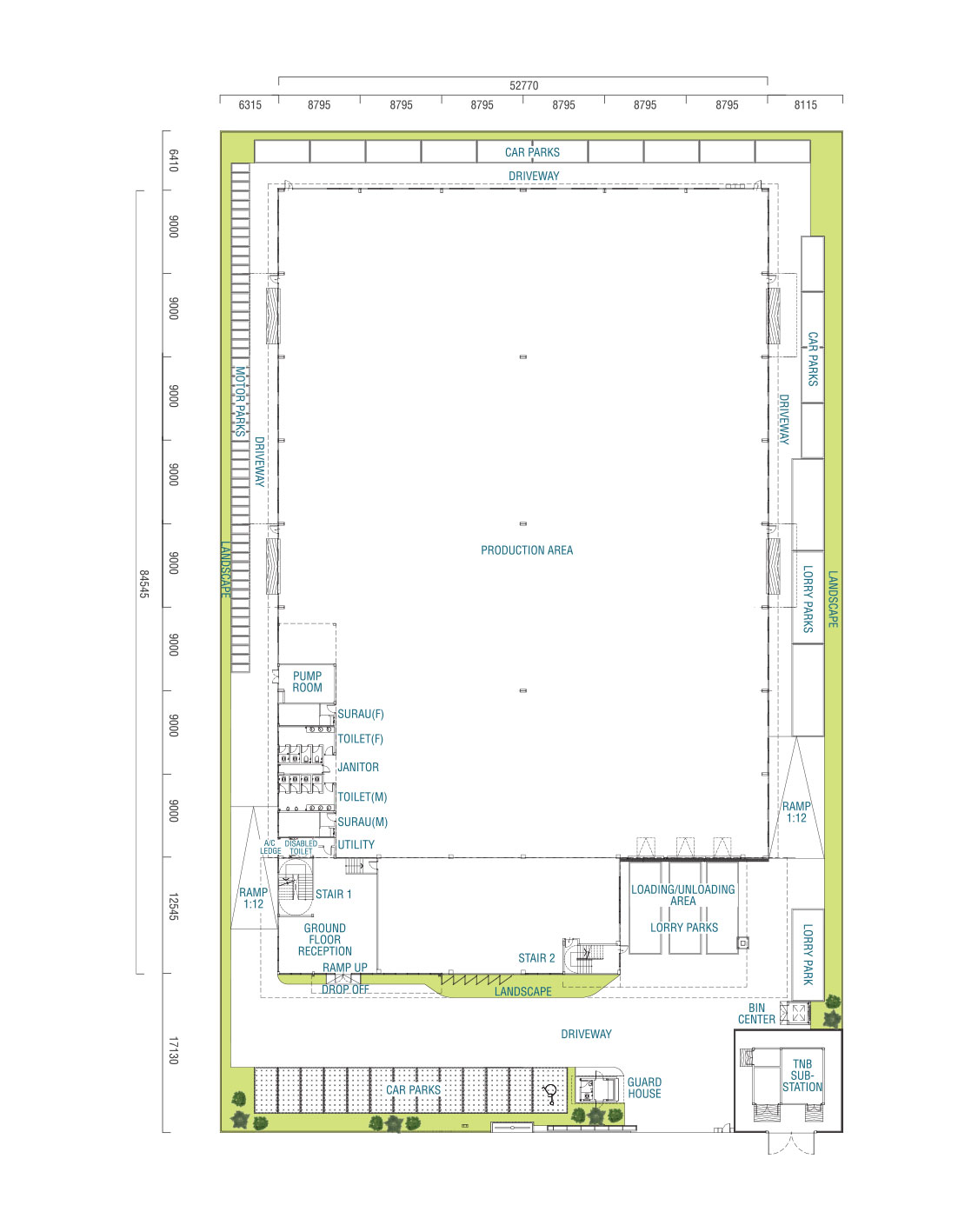

GROUND FLOOR

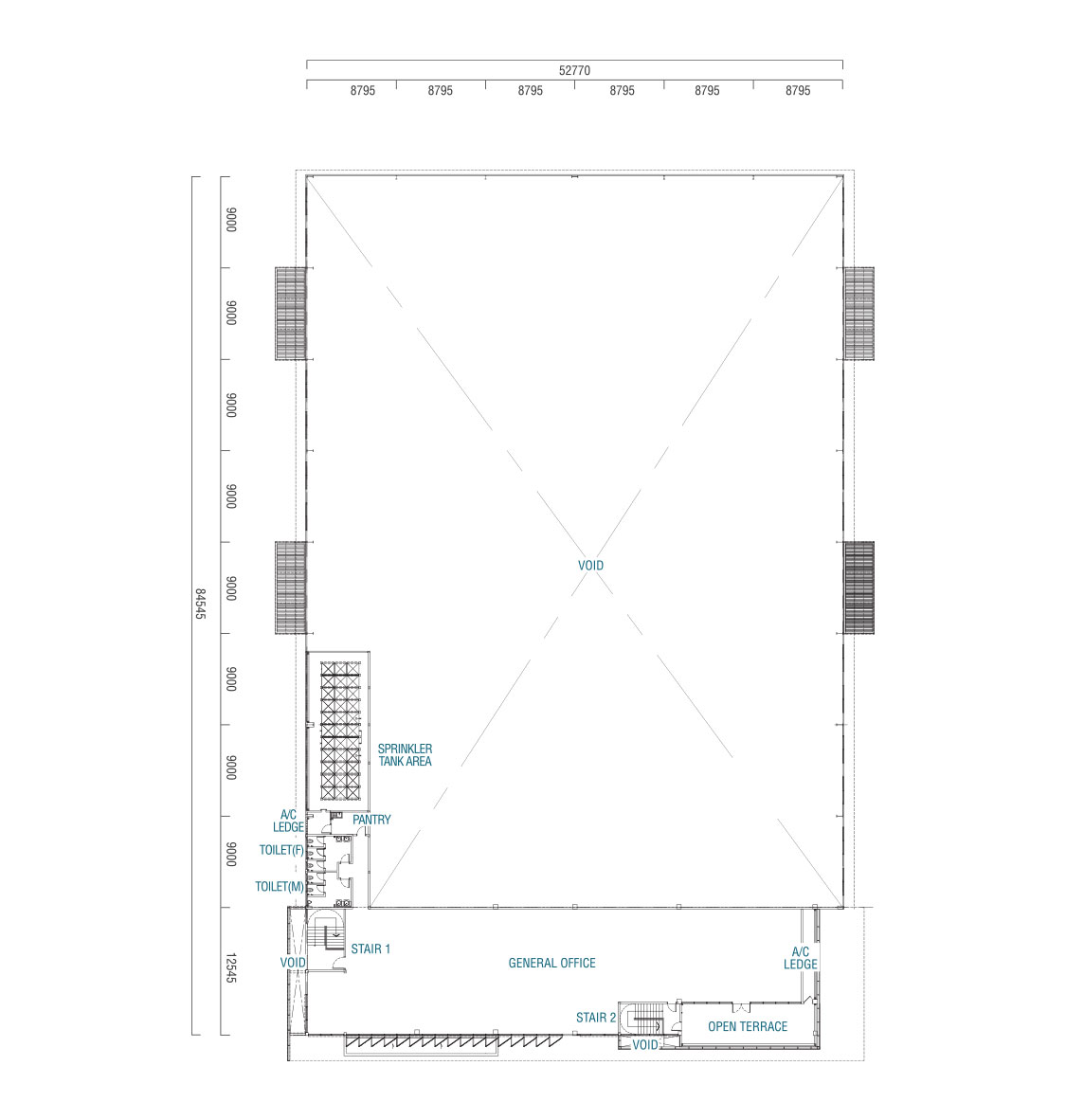

FIRST FLOOR

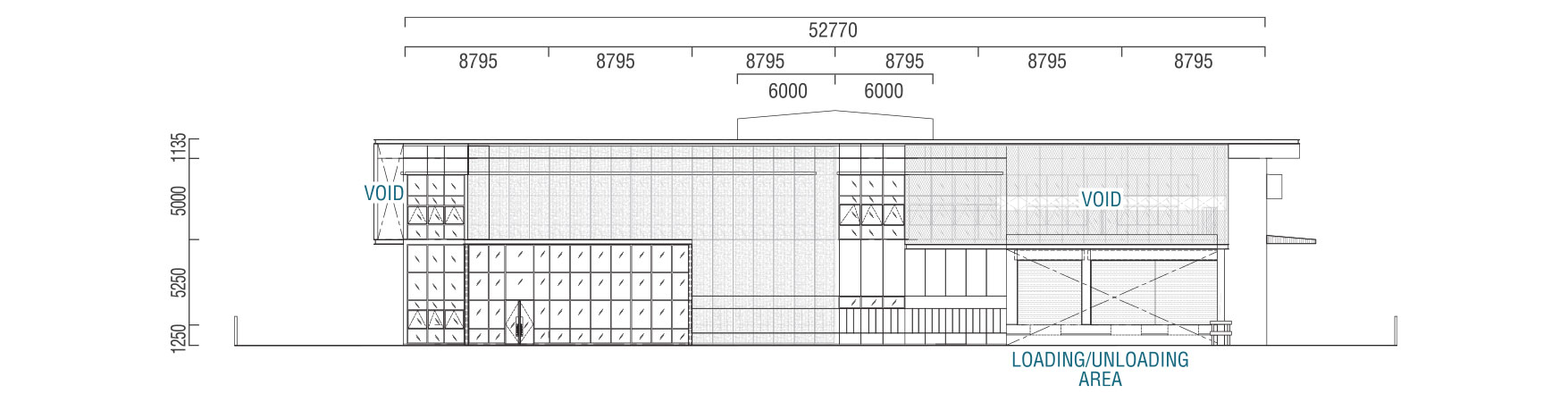

FRONT ELEVATION

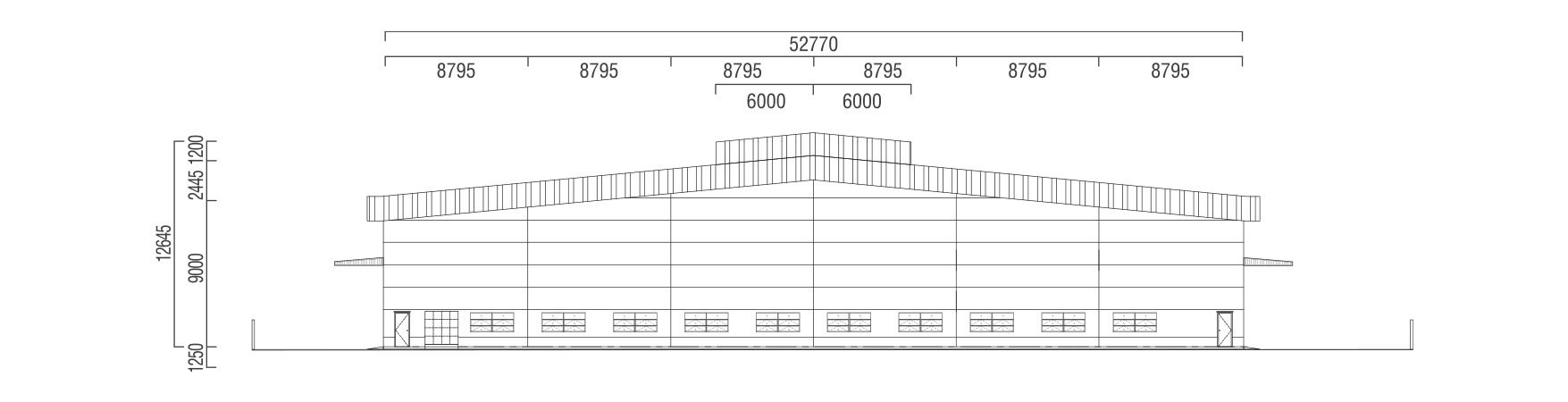

REAR ELEVATION

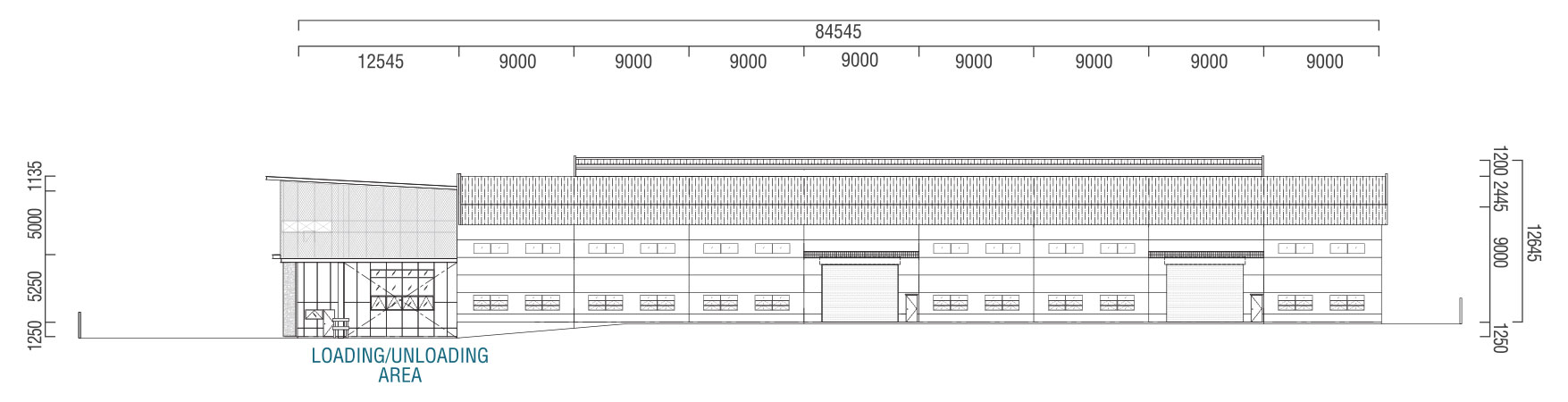

RIGHT ELEVATION

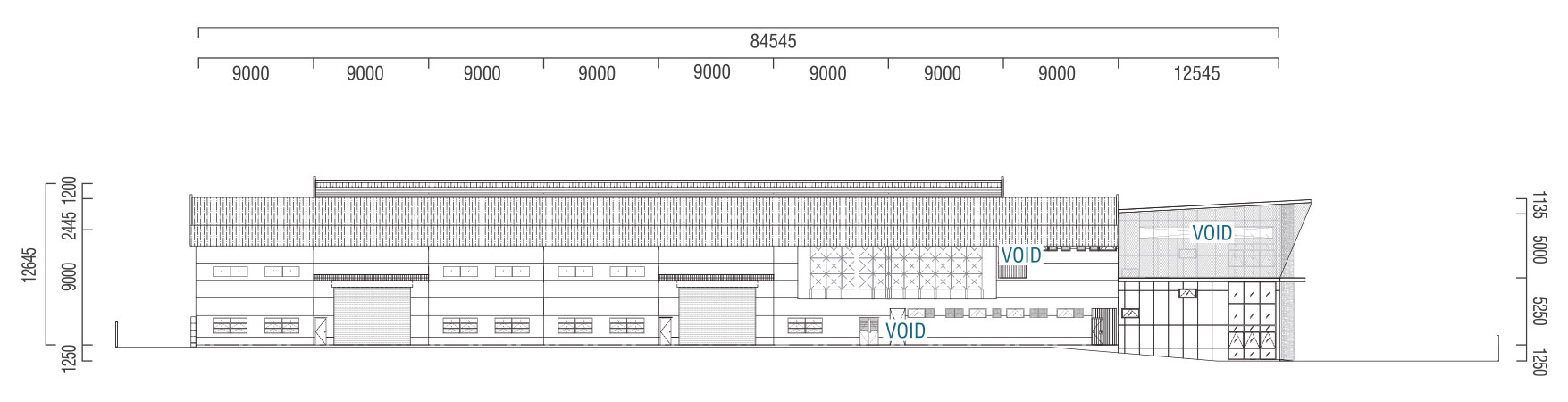

LEFT ELEVATION
Factory Height
:
9 m
Floor Design Loads
Production Area (Ground Floor)
:
20kN/m², Non-Suspended Floor Slab
Office Area (Mezzanine Floor)
:
2.5kN/m²
Roof Design Loads
Production Area Roof
:
Imposed dead load = 0.4kN/m² (Load of Rafter, Purlin, Metal Roofing Sheet, Insulation, Lighting Fitting, Sprinkler Pipe, Gypsum Board Ceiling with Aluminium Tee Frame & Solar Panel)
Live load= 0.25kN/m²
Roof Systems
Roof Structure
:
Structural Steel Designed to BS 5950 Standard
Roof Sheets
:
Metal Roof or Equivalent c/w 50mm Thick Fiberglass Insulation
Gutter
:
Stainless Steel Gutter
Walls
Internal Wall (Office and Sprinkler Tank Area)
:
115mm thick common brick wall with plaster and painted with emulsion paint.
:
Ceramic wall tiles to toilets (2.1m High)
External Wall (Office Area)
:
115mm thick common brick wall with plaster and painted with weather bond paint.
External Wall (Production Area)
:
Brick wall and/or Precast wall and painted with weather bond paint
Floors
Ground Floor
:
G30 Concrete with a Layer of Polythene Sheet and BRC Mesh
Production Finishes
:
4kg/m² Floor Harderner Finishes
Office & Lobby Finishes
:
Cement Render
Lobby Staircase Finishes
:
Cement Render
Toilet Floor Finishes
:
Matt Surface Ceramic Tiles
Doors
External Doors
:
Motorized Roller Shutters and Mild Steel Doors (Production Area)
:
Laminated Glass Door (Office Entrance)
Internal Doors
:
Fire-rated Door (Based on Local Authority Requirement) & Timber Flush Door (Office Area)
Windows
External Windows
:
Aluminium Frame Casement Window (Production Area)
:
Reflective Glass Curtain Wall (Office Area)
:
Aluminium Framed Top Hung Windows (Office Area)
Ceiling
Office Area
:
Gypsum Pin Hole False Ceiling (Office Area)
:
Gypsum Board Plaster Ceiling (Lobby Area)
Production Area
:
Exposed Steel Structure (No Ceiling)
Infrastructure & Amenities
External Road
:
Reinforced Concrete Road c/w road marking
Fencing
:
Front Signage : Common Brick Wall with c/w Plaster Cement and Painted with Weatherbond Paint
:
Perimeter : 150mm High Kerb with 1.8m High BSP Fencing
Gate
:
Mild Steel Sliding Gate Without Motor
:
Power Point for Motor Provided
Drainage System
:
Concealed Pipe Culvert Drain
Sewerage System
:
Vitrified Clay Pipe (VCP) Connect to Main Sewerage Line
Bin Center
:
1 no.
Guardhouse
:
1 no.
Sprinkler Tank & Plinth
:
1 no.
TNB Sub-station
:
Subject to Appropriate Authority Requirement
Dock Leveller
:
Subject to Design
Standard Mechanical & Electrical Specification
MSB 1000A (Setting 600A)
:
1 no.
DB 150A
:
2 nos.
DB 60A
:
2 nos.
DB 30A
:
1 no.
Lighting Point
:
Yes
13A S/S/O
:
Yes
Air-Cond Power Point
:
Yes
Emergency Light
:
Subject to Appropriate Authority Requirement
Keluar' Sign
:
Subject to Appropriate Authority Requirement
Telephone Point
:
Yes
Data Point
:
Yes
20A Isolator Point
:
Yes
30A Isolator Point
:
Yes
Fire Protection Systems
Fire Alarm System
:
Yes
Hosereel System
:
Yes
Automatic Sprinkler System (Ordinary Hazard)
:
Yes
Portable Fire Extinguisher
:
Yes
Hydrant System
:
Yes
Plumbing & Water Recticulation Systems
Water Tank for Toilet only
:
Yes
Incoming Domestic Piping & Discharged Piping
:
Yes

The information contained in this loose sheet is subject to change and cannot form part of an offer or contract. All renderings are artist’s impression only. While every reasonable care has been taken in preparing this loose sheet, the developer cannot be held responsible for any inaccuracies. All the above items are subject to variations, modifications, and substitutions as may be required by authorities or recommended by the Architect or Engineer.
